The Crystallization (Crystallisation) Waterproofing System: A Revolutionary Solution for Waterproofing
Introduction to various waterproofing systems:
The Crystallization Waterproofing System is a revolutionary solution for waterproofing concrete structures. It creates a permanent seal within the surface itself using a chemical reaction that creates a crystalline structure, offering superior protection against water damage and durability compared to traditional methods.
Waterproofing is the process of making a surface or structure resistant to water or moisture. It is an important step in preventing water damage to buildings, infrastructure, and other surfaces. The goal of waterproofing is to create a barrier that prevents water from penetrating into the surface, which can cause structural damage, mold growth, and other problems.
In building foundations, waterproofing is crucial because water can seep through cracks and weaken the foundation, leading to structural instability. Waterproofing also prevents water from entering basements, which can lead to moisture buildup, mold growth, and damage to stored items. Water tanks require waterproofing to prevent water from leaking out and to prevent contaminants from entering the water supply.
There are many different methods and materials that can be used for waterproofing, including various types of coatings, various types of pre-formed membranes, and crystallization systems. The specific method used will depend on the surface and the specific requirements. Proper waterproofing can help protect buildings and structures from water damage, extend their lifespan, and prevent costly repairs.
Introduction to the Crystallization Waterproofing System as a new and innovative solution that can offer superior protection against water damage.
The Crystallization Waterproofing System is a new and innovative solution that offers superior protection against water damage. It is a method of waterproofing that involves the use of chemicals that react with the surface to create a crystalline structure that seals the surface and prevents water penetration. This system is particularly effective for concrete structures, such as basements, foundations, and water tanks.
Unlike traditional waterproofing methods that rely on a surface coating or membrane, the Crystallization Waterproofing System works by creating a permanent seal within the surface itself. The chemical reaction between the crystals and the surface creates a barrier that is resistant to water penetration and can withstand hydrostatic pressure.
The Crystallization Waterproofing System has several advantages over traditional waterproofing methods. It is more durable and long-lasting, as the crystalline structure becomes an integral part of the surface itself, unlike a membrane or coating, which can be prone to wear and tear over time.
Another advantage of the Crystallization Waterproofing System is its eco-friendliness. The chemicals used in the process are non-toxic and do not emit harmful fumes, making it a safer option for both the environment and those involved in the application process.
Section 1: Understanding Crystallization Waterproofing System
- The Crystallization Waterproofing System is a type of waterproofing method that creates a permanent seal within the surface of concrete structures. It works by using a chemical reaction between specially formulated chemicals and the concrete surface to create a crystalline structure that blocks water penetration. The chemicals penetrate deep into the concrete surface and react with the free lime and moisture to form insoluble crystals that grow and expand to fill the capillary pores and micro-cracks in the concrete.
- As the crystals grow, they block the pores and form a permanent seal within the concrete surface, preventing water from penetrating the structure. The crystalline structure is an integral part of the concrete and provides superior protection against water damage and hydrostatic pressure.
- The Crystallization Waterproofing System is a durable and long-lasting solution that is effective for various concrete structures, such as basements, foundations, water tanks, and swimming pools. It is also eco-friendly and non-toxic, making it a safer option for the environment and those involved in the application process. Overall, the Crystallization Waterproofing System offers a reliable and effective solution for waterproofing concrete structures.
- The science behind the crystallization process in the Crystallization Waterproofing System is based on the principle of capillary action and the formation of insoluble crystals. Capillary action is the ability of water to move through small spaces and pores in concrete due to the surface tension between water molecules.
- When the specially formulated chemicals in the Crystallization Waterproofing System are applied to the concrete surface, they penetrate the pores and react with the free lime and moisture present in the concrete to form insoluble crystals. The crystals then continue to grow and expand, filling the capillary pores and micro-cracks in the concrete. As the crystals grow, they block the pores and create a permanent seal within the concrete surface.
- The crystals formed through the chemical reaction are insoluble and do not degrade over time, making them a permanent part of the concrete structure. Additionally, the crystals continue to grow and expand over time, providing a self-healing effect to the concrete surface. This means that if any new cracks or pores appear in the surface over time, the crystals will continue to grow and fill the gaps, maintaining the waterproof barrier.
Section 2: Advantages of Crystallization Waterproofing System
- Self-healing and self-sealing: As mentioned before, the Crystallization Waterproofing System has the ability to self-heal and self-seal any new cracks or leaks that may occur in the concrete surface over time. The crystals formed through the chemical reaction can continue to grow and expand, filling the gaps and maintaining the waterproof barrier.
- Long-lasting protection: The crystals formed in the concrete surface through the Crystallization Waterproofing System are permanent and do not degrade over time, providing long-lasting protection against water damage.
- No need for external membranes: Unlike traditional waterproofing methods that require the use of external membranes or coatings, the Crystallization Waterproofing System creates a seal within the concrete surface itself, eliminating the need for any external layers.
- Wide range of crack widths: The Crystallization Waterproofing System can effectively seal cracks ranging from 0.1mm to 0.5mm in width, providing superior protection against water damage.
- Cost-effective: The Crystallization Waterproofing System is a cost-effective solution for waterproofing as it eliminates the need for external membranes and coatings, which can be expensive to install and maintain over time.
- Long-lasting durability: The Crystallization Waterproofing System offers long-lasting durability as the crystals formed in the concrete surface are permanent and do not degrade over time. This provides continuous protection against water damage for the life of the structure.
- Low maintenance requirements: The system has low maintenance requirements since there is no need for external membranes or coatings, which can be expensive and require periodic maintenance. The self-sealing and self-healing properties of the crystallization process also reduce the need for frequent repairs and maintenance.
- Increased speed of application: The application of the Crystallization Waterproofing System can be faster than traditional waterproofing methods, since it is typically applied as a dry powder or liquid solution that can be easily sprayed or applied by brush or even admixed into the concrete batch.
Section 3: Applications of Crystallization Waterproofing System
- Basements: The system can be applied to the interior or exterior walls of basements to provide a waterproof barrier and prevent water from penetrating through the walls.
- Concrete structures: The system can be used to waterproof all concrete structures such as bridges, tunnels, and parking garages.
- Water tanks: The system can be used to waterproof water tanks and reservoirs, preventing water leakage and contamination.
- Swimming pools: The system can also be used to waterproof swimming pools and other water features, preventing water loss and damage to surrounding structures.
- Roofs: The system can be used to waterproof flat roofs, preventing water penetration and damage to the building below.
- Foundations: The system can be used to waterproof the foundation of a building, preventing water from seeping into the basement or crawlspace.
There are numerous real-life projects where Crystallization waterproofing system was successfully used.
Section 4: Limitations of Crystallization Waterproofing System
- While the Crystallization Waterproofing System can be highly effective in many situations, there are certain conditions where it may not be as effective. For example, if the surface to be treated is too smooth, the crystals may not be able to adhere properly and create a waterproof barrier. Additionally, if there are large size cracks present, the system may not be able to fully seal them, and additional repairs may be necessary. It is important to assess the specific conditions of each project to determine if the Crystallization Waterproofing System is the best solution.
- If the surface to be treated is too smooth, an alternative solution could be to roughen the surface or use a mechanical treatment to create a more porous surface that the crystals can adhere to. This could be achieved through methods such as sandblasting, shot blasting, or scarification.
- For large cracks or areas of damage that cannot be effectively treated with the Crystallization Waterproofing System alone, complementary solutions may be necessary. For example, traditional methods such as injection grouting or membrane systems could be used in conjunction with the Crystallization Waterproofing System to fully seal any gaps or cracks.
- It is important to consult with a waterproofing professional to determine the best course of action for each individual project, taking into account factors such as the type of surface, the extent of damage, and the desired level of protection.
Section 5: Choosing the Right Crystallization Waterproofing product
There are multiple types of crystalline waterproofing systems available in the market. It is crucial to select the appropriate system based on the specific application and requirements.
- Integral Crystalline Waterproofing: This system involves the addition of crystalline materials directly into the concrete mix. As the concrete cures, the crystalline material forms a network of waterproofing crystals within the concrete structure.

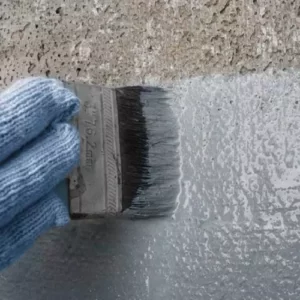

- Surface Applied Crystalline Waterproofing: This system involves the application of a crystalline waterproofing coating on the surface of the concrete structure. The coating penetrates the surface and reacts with the moisture in the concrete to form crystals that fill the pores and capillaries, creating a waterproof barrier.
- Injection Grouting: This system involves the injection of a crystalline material into cracks and voids in concrete structures. The material reacts with the moisture in the concrete to form crystals that fill the cracks and create a waterproof barrier.
- Crystallization swell bars: This uses a special type of concrete joint waterstop to create a waterproof barrier in concrete structures. The swell bar is made up of a hydrophilic material that absorbs water and swells to create a seal in the joint when it comes into contact with water. As the material swells, it creates a tight seal that prevents water from entering the structure. This system is particularly useful in areas where joints are prone to water infiltration, such as in underground structures, tunnels, and bridges.
- Crystallization repair mortars are a type of crystalline waterproofing system that is used to repair and restore damaged concrete structures. They are specially formulated with a blend of cement, graded aggregates, and crystalline admixtures that react with water to form insoluble crystals that penetrate deep into the concrete matrix, filling and sealing any cracks or voids. The crystalline growth process helps to increase the density and strength of the concrete, making it more durable and resistant to water damage. Crystallization repair mortars can be used to repair a wide range of concrete structures, including bridges, dams, tunnels, and buildings.
- Crystalline dry shake: type of waterproofing system that is applied to freshly placed concrete floors. It consists of a dry powder that contains active chemicals that react with moisture in the concrete to form crystals. These crystals then fill the capillary pores in the concrete, creating a waterproof barrier. The dry shake system is usually applied to the surface of the concrete while it is still wet, and it is then troweled into the surface. The system is often used in industrial and commercial applications where the concrete is subjected to high traffic or other wear and tear.
It is essential to select a reputable and experienced contractor when considering any type of waterproofing system, including crystallization waterproofing. A professional and knowledgeable contractor will have the expertise and skills necessary to properly assess the site conditions, recommend the appropriate system, and install it correctly.
Choosing an inexperienced or unreliable contractor can lead to costly mistakes and ineffective waterproofing, which can result in water damage and structural issues. It is crucial to research and vet potential contractors, checking their credentials, reputation, and past project experience.
Additionally, working with an established and reputable contractor can provide several benefits, including access to high-quality materials, advanced technology, and a proven track record of successful installations. It can also provide peace of mind, knowing that the project is in capable hands and that any issues will be addressed promptly and professionally.
Section 6: Maintaining and Caring for Crystallization Waterproofing System
- Regular Inspections: Inspect the waterproofed surface regularly to ensure there are no signs of damage, such as cracks or leaks. Early detection can help prevent more significant issues and save you money in the long run.
- Clean the Surface: Keep the surface clean and free from debris, which can cause damage or clog the system. Use a gentle cleaner that does not contain any harsh chemicals that could compromise the waterproofing system.
- Avoid Impact: Avoid dropping heavy objects or causing impact damage to the surface, which could result in cracks or fractures.
- Protect Against UV Damage: Exposure to sunlight and UV rays can cause damage to the waterproofing system. Apply a UV-resistant coating or keep the surface shaded to minimize exposure to sunlight.
- Maintain Proper Drainage: Proper drainage is critical to ensure the effectiveness of the waterproofing system. Keep gutters and downspouts clear of debris and make sure water is flowing away from the structure.
- Address Issues Promptly: If any issues are detected, such as cracks or leaks, address them promptly. Delaying repairs can result in more significant damage and potentially compromise the effectiveness of the waterproofing system.
In summary, the Crystallization Waterproofing System is an innovative solution that can provide superior protection against water damage by creating a self-healing and self-sealing barrier. The system works through the process of crystallization, which forms a network of crystals that block the passage of water. It offers several benefits over traditional waterproofing methods, including long-lasting durability and low maintenance requirements. The system can be used in various applications, such as in basements, concrete structures, and water tanks, and there are different types of crystalline waterproofing systems available. It is important to select a reputable and experienced contractor for installation and proper maintenance is crucial to ensure the longevity and effectiveness of the system.
The Crystallization Waterproofing System is a revolutionary solution that offers superior protection against water damage. Its ability to self-heal and self-seal cracks and leaks, combined with its long-lasting durability and low maintenance requirements, make it an ideal choice for a wide range of applications, such as building foundations, basements, and water tanks. The system can save time and money compared to traditional waterproofing methods and has been successfully used in real-life projects. However, it is important to select a reputable and experienced contractor and properly maintain the waterproofed surface to ensure its longevity and effectiveness. With its many benefits and potential to revolutionize the waterproofing industry, the Crystallization Waterproofing System is a promising solution for those in need of reliable and effective waterproofing.
As a final note, we encourage readers to consider the Crystallization Waterproofing System for their waterproofing needs. This innovative and effective solution offers numerous benefits, such as long-lasting durability, low maintenance requirements, and the ability to self-heal and self-seal cracks and leaks. It has been successfully used in various applications, including basements, concrete structures, and water tanks. However, it is important to select a reputable and experienced contractor and properly maintain the waterproofed surface to ensure the effectiveness and longevity of the system.
