Introduction
Concrete Defects Identification and Treatment is crucial for ensuring the durability and longevity of concrete structures. Concrete is a versatile and durable construction material, but it is not immune to developing defects, including cracks. These defects can form during or after construction for various reasons, ranging from natural shrinkage to structural overload. Proper identification and treatment of these defects are essential to maintaining the structural integrity and longevity of concrete structures. In this article, we focus on identifying cracks in concrete, discussing the seven most common types of cracks, why they occur, their impact, and how to fix them.
Common Passageways for Water Ingress in Concrete Structures
Before delving into cracks, it’s important to recognize other common defects that can lead to water ingress in concrete structures. Effective Concrete Defects Identification and Treatment can help address these issues:

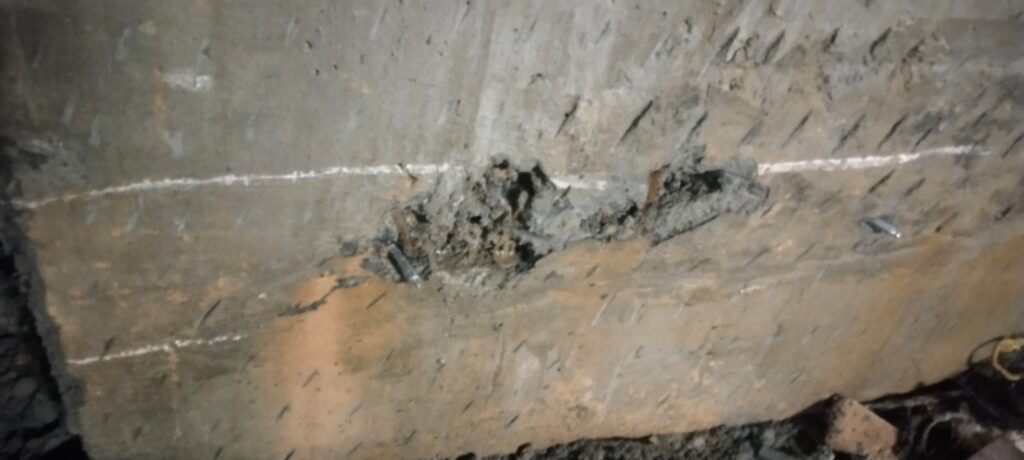

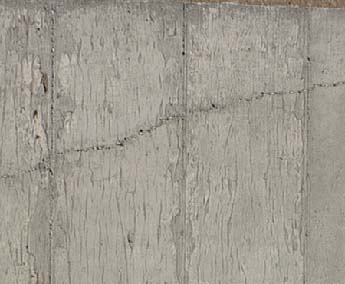

Cold Pour Joints
Description: Points where old and new concrete meet without proper bonding, creating potential weak spots.
Impact: Creates a weakness in the concrete and a possible passageway for water intrusion.

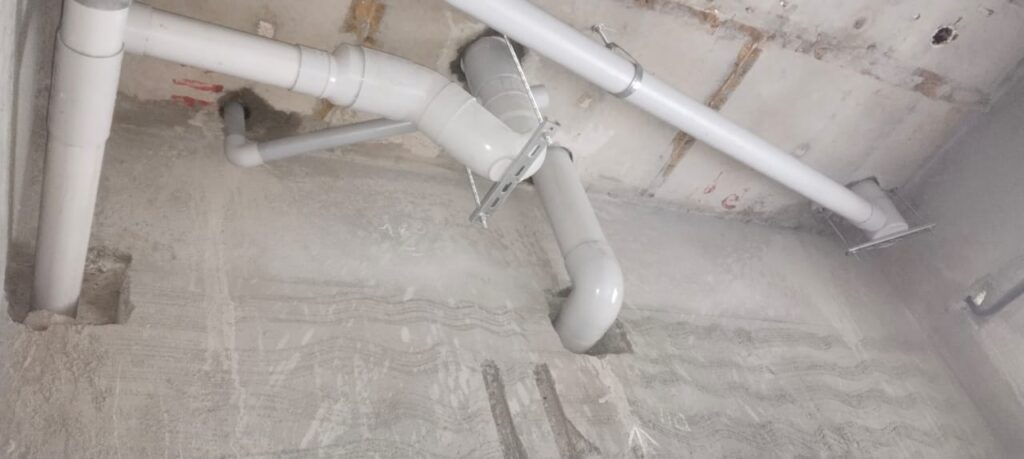

Service Lines and Tie Rod Penetrations
Description: Penetrations through concrete for service lines or formwork ties that can become pathways for water.
Impact: Provides direct paths for water to seep through the concrete structure.
Honey comb/Bug Holes/Blow Holes/Porous Concrete
Description: Air pockets in concrete caused by improper vibration or mix design.
Impact: May lead to water ingress and affect the durability of the concrete.

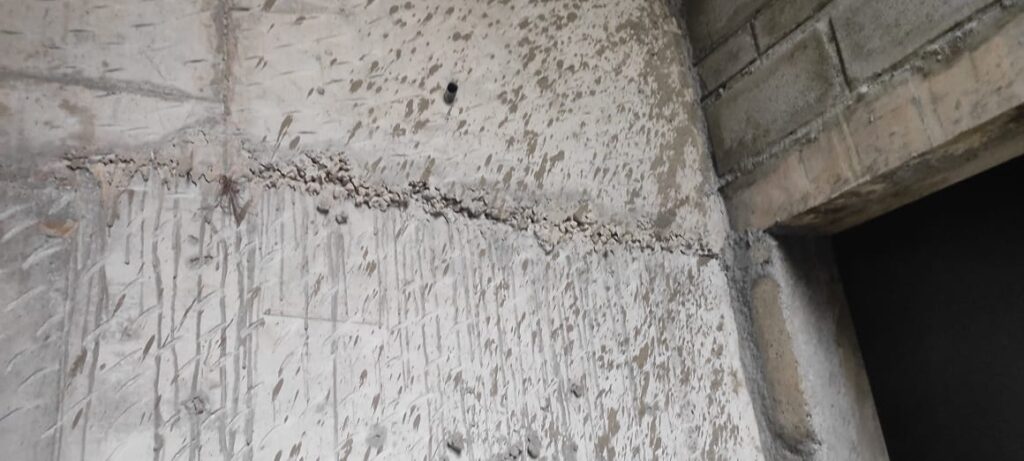

Construction Joints
Description: Gaps between successive concrete pours that can become weak points if not properly managed.
Impact: May cause serviceability problems and lack of durability.

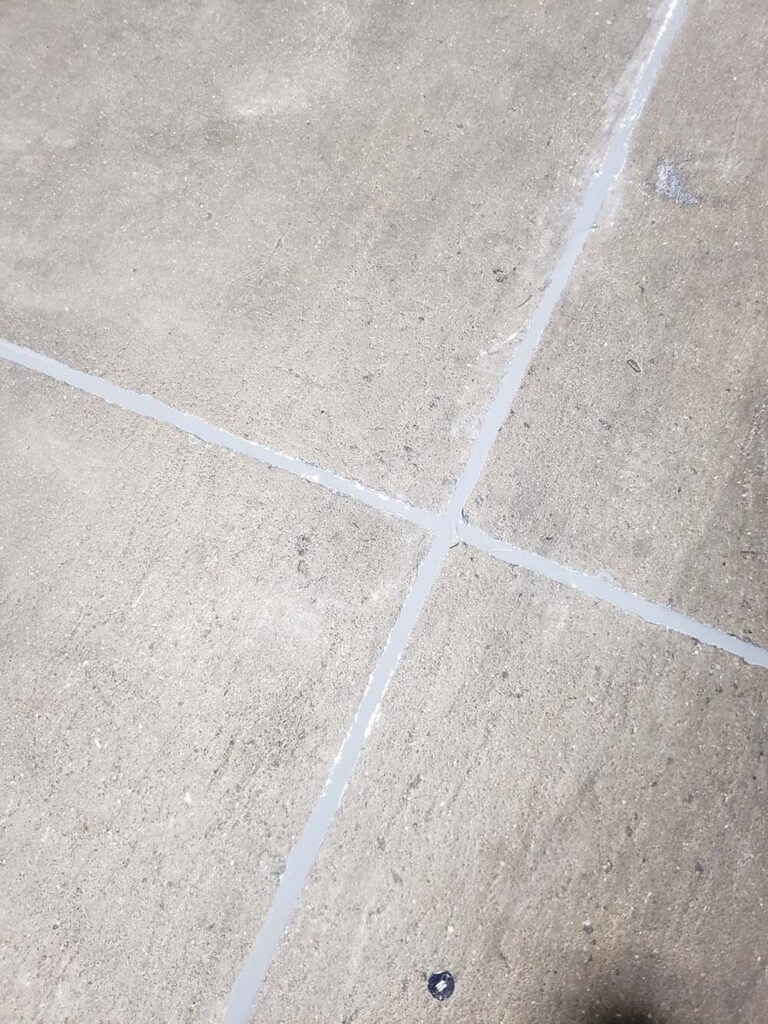

Control/Contraction Joints
Description: Saw cuts in concrete designed to control cracking but can become problematic if not executed correctly.
Impact: Can lead to uncontrolled cracking if not properly timed.

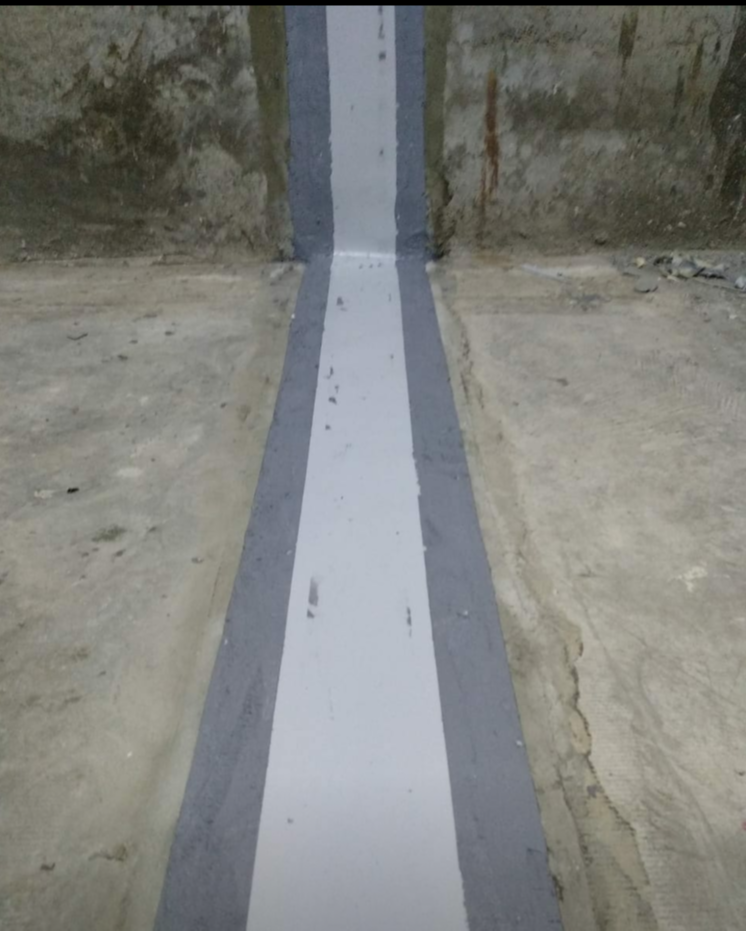

Expansion Joints
Description: Gaps designed to accommodate concrete expansion and contraction, which can deteriorate over time.
Impact: Lack of maintenance can lead to joint spalling and decreased service life.
Identifying and Treating Cracks in Concrete
Cracks in concrete are generally categorized into structural and non-structural types. Identifying the type and cause of a crack is crucial in determining the appropriate repair method. Here, we discuss the seven most common types of cracks in concrete, their causes, impacts, and how to fix them. Concrete Defects Identification and Treatment can effectively address these issues:

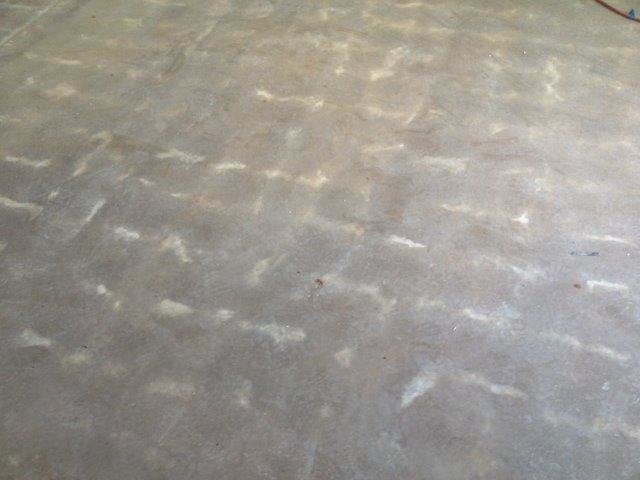

Plastic Settlement Cracks
Causes: Occur while concrete is still plastic, often due to bleed water and settlement of aggregates.
Impact: Can expose reinforcement to the elements, leading to corrosion.
Treatment: In pre-hardened concrete, re-vibration or mechanical re-trowelling. In hardened concrete, v-cutting and filling with suitable material.

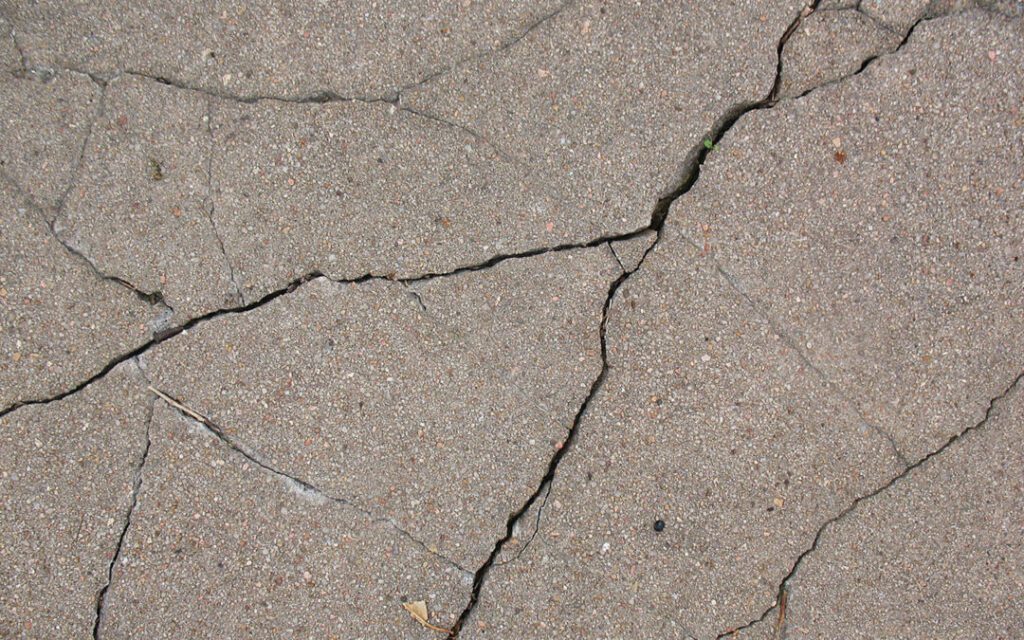

Plastic Shrinkage Cracks
Causes: Rapid drying of the concrete surface while it is still plastic.
Impact: Generally aesthetic, but can deepen and widen over time.
Treatment: Surface vibrators for pre-hardened concrete; v-cutting and filling for hardened concrete.

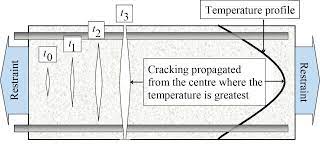

Early Thermal Contraction Cracks
Causes: Temperature differences within a concrete element during the early hardening process.
Impact: Can lead to water ingress and corrosion of reinforcement.
Treatment: V-cutting and filling with suitable material, targeted injection, and protective coatings.

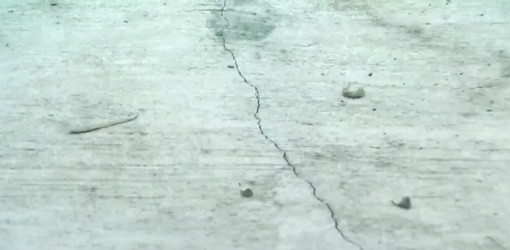

Long-Term Drying Shrinkage Cracks
Causes: Moisture loss from concrete over time.
Impact: Can compromise durability and aesthetics.
Treatment: V-cutting and filling with suitable material, targeted injection, and protective coatings.

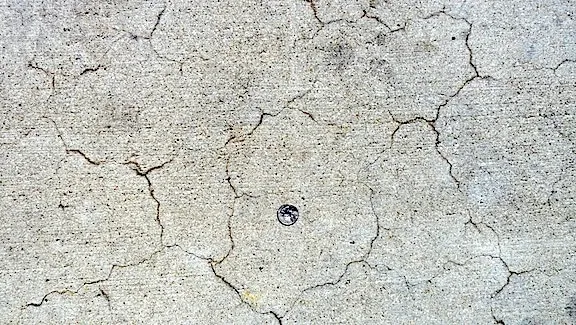

Crazing
Causes: Surface shrinkage due to drying, often from improper curing or environmental conditions.
Impact: Typically aesthetic, but can lead to surface deterioration.
Treatment: Applying protective coatings to enhance durability.

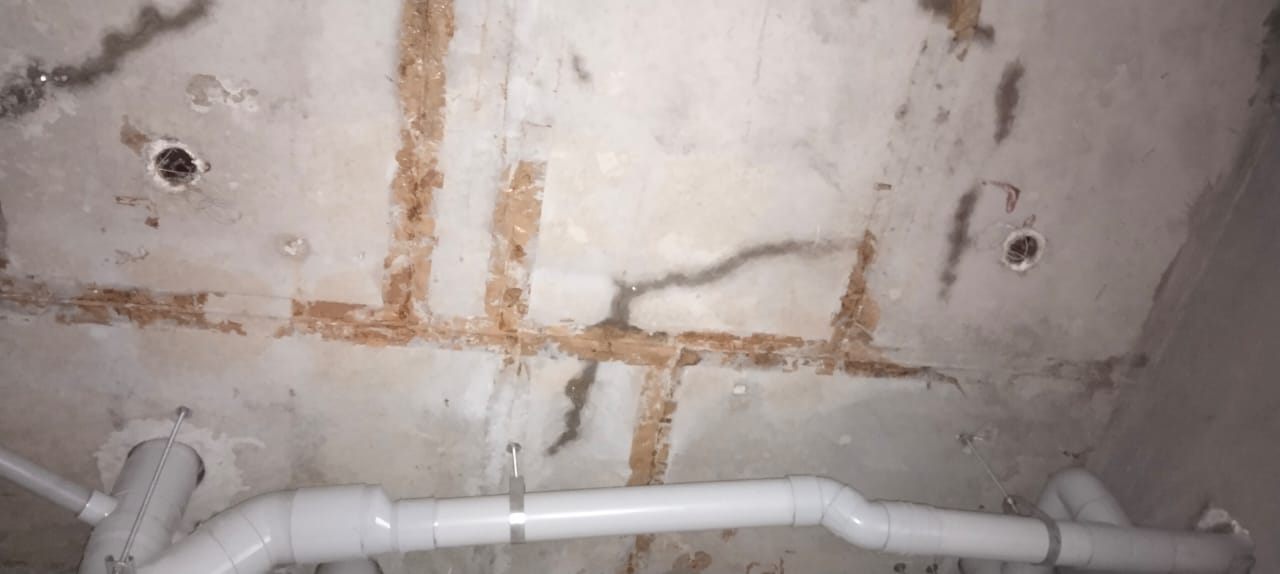

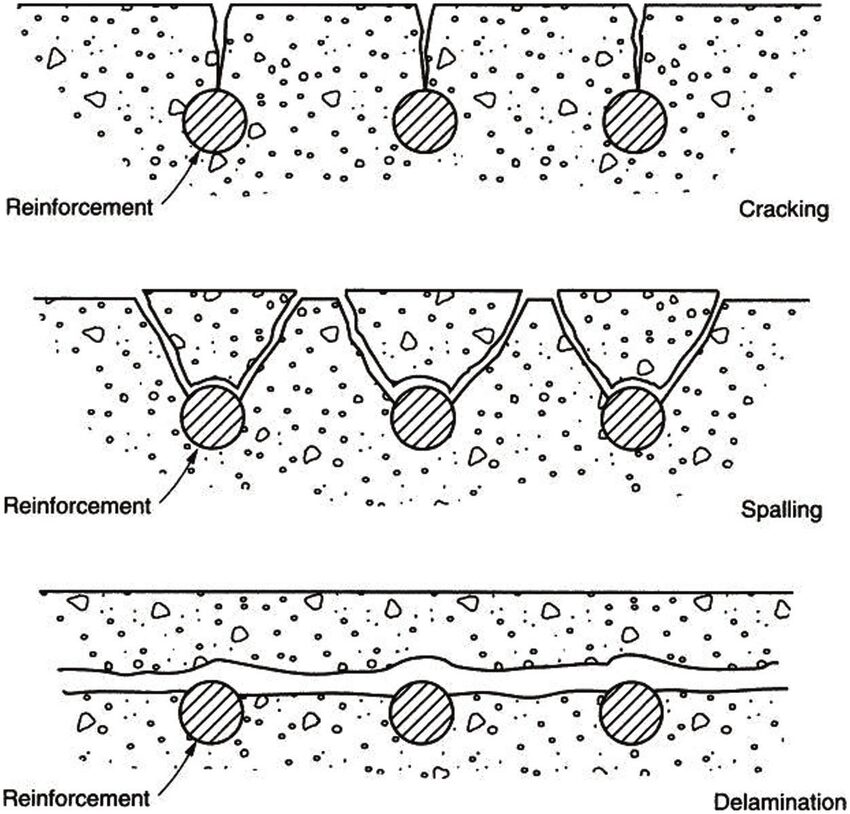

Corrosion of Reinforcement
Causes: Chloride ingress or carbonation reducing the concrete’s alkalinity, leading to steel corrosion.
Impact: Can severely compromise structural integrity.
Treatment: Exposing and cleaning reinforcement, applying primers and rust inhibitors, and using high-build repair mortars.

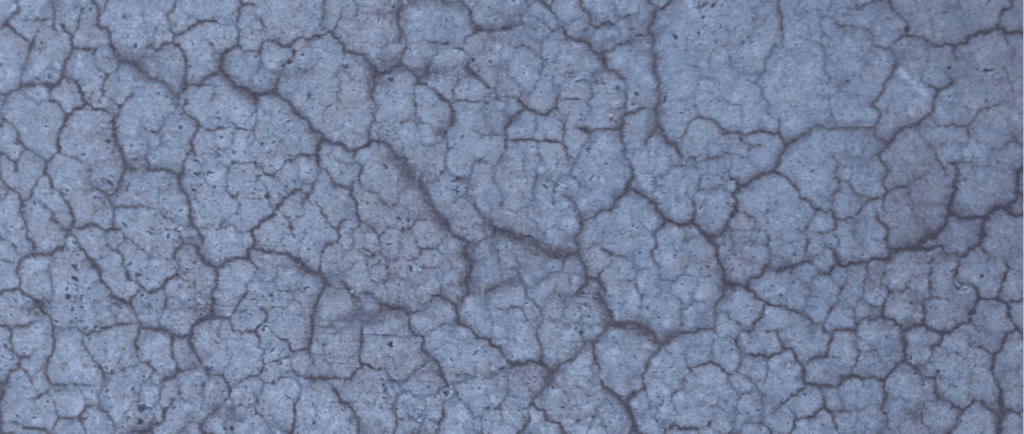

Alkali-Aggregate Reaction (AAR)
Causes: Chemical reactions between alkalis in cement and reactive aggregates.
Impact: Long-term expansion and cracking, leading to structural issues.
Treatment: Repair existing cracks, seal leaks, and apply waterproof coatings to limit moisture ingress.
Preventive Measures for Concrete Cracks
Effective Concrete Defects Identification and Treatment involves preventive measures to minimize the occurrence of cracks:
- Proper Curing: Ensures adequate moisture retention during the early stages of concrete setting.
- Quality Mix Design: Using appropriate materials and mix ratios to minimize shrinkage.
- Control and Expansion Joints: Proper placement and execution to manage cracking.
- Adequate Reinforcement: Ensures structural stability and reduces the likelihood of cracking.
Conclusion
Cracks in concrete are a common issue but can be effectively managed with proper identification and treatment methods. Regular inspection and timely repair are key to maintaining the durability and safety of concrete structures. At Geoliz Waterproofers Pvt. Ltd., we specialize in advanced solutions for crack repair and maintenance, ensuring your buildings remain strong and secure for years to come. Concrete Defects Identification and Treatment is essential for the longevity and integrity of your concrete structures.
