1.Podium Slab Waterproofing – importance

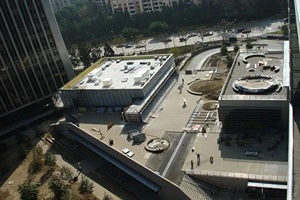

A podium slab is a structural element in a building that is constructed on top of a podium, which is an elevated platform that can be used for various purposes such as parking, landscaping, or recreational areas. Podium slabs are typically constructed using reinforced concrete, and they are subject to water exposure from rain and irrigation systems. As a result, waterproofing a podium slab is critical in preventing water damage and ensuring the longevity of the structure.
Podium slab waterproofing involves the application of a waterproofing system that is designed to protect the concrete from water infiltration. There are several steps involved in waterproofing a podium slab:
2. available systems for Podium Slab Waterproofing
There are several waterproofing systems available for podium slabs. The choice of waterproofing system depends on various factors such as the type of building, the intended use of the podium slab, and the budget. Here are some of the common waterproofing systems for podium slabs:
- Liquid-applied membrane: This is a popular waterproofing system that involves applying a liquid coating onto the podium slab. The liquid coating can be a Polyurethane, bituminous or acrylic-based or composite of these material in some case. They cures to form a seamless, flexible, and durable waterproofing membrane. This system is ideal for irregularly shaped podium slabs and can be applied over existing concrete surfaces.

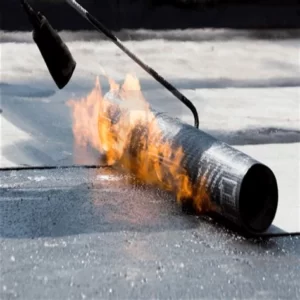

- Sheet membrane: This is a waterproofing system that involves installing a pre-fabricated sheet membrane onto the podium slab. The sheet membrane is made of materials such as PVC, SBS or Modified bitumen and is designed to provide a durable and seamless waterproofing barrier. This system is suitable for large, flat podium slabs and is ideal for areas with heavy foot traffic.
- Cementitious coating: This is a waterproofing system that involves applying a cement-based coating onto the podium slab. The coating cures to form a hard and durable surface that provides a waterproof barrier. This system is ideal for areas that are subjected to high mechanical stresses, such as parking areas.
- Drainage mat: This is a waterproofing system that involves installing a drainage mat onto the podium slab. The mat is made of materials such as high-density polyethylene and provides a layer of protection over the waterproofing membrane. This system is ideal for areas with heavy rainfall or where water accumulation is a concern.
3. selection of Podium Slab Waterproofing
The selection of a waterproofing system for a podium slab depends on several factors, including the intended use of the space, the climate and weather conditions of the location, the budget, and the type of building structure. Here are some factors to consider when selecting a podium slab waterproofing system:
- Durability: The waterproofing system should be durable and able to withstand wear and tear, foot traffic, and other mechanical stresses. It should also be resistant to chemicals and UV radiation.
- Flexibility: The waterproofing system should be flexible enough to accommodate movement and expansion and contraction of the building structure due to changes in temperature and humidity.
- Compatibility: The waterproofing system should be compatible with the building structure, construction materials, and other waterproofing systems used in other parts of the building.
- Installation: The installation process should be efficient, cost-effective, and minimally disruptive to the building occupants and activities.
- Maintenance: The waterproofing system should be easy to maintain, repair, and replace when necessary, without causing damage to the building structure.
- Environmental impact: The waterproofing system should be environmentally friendly and not contribute to pollution or waste.
- Cost: The cost of the waterproofing system should be within the budget of the project and provide good value for money in terms of durability, performance, and lifespan.
Based on these factors, the selection of a podium slab waterproofing system may involve a combination of different systems, such as liquid-applied membranes, sheet membranes, cementitious coatings, and drainage mats. It is important to consult with a professional waterproofing contractor who can provide expert advice on the most suitable waterproofing system for your specific project, taking into account the above factors and other specific requirements of your building structure.
