1.FRP Waterproofing (Fiber Reinforced Polymer) – Advanced Lining Works

Fiber Reinforced Polymer (FRP) lining is an advanced, highly effective technology in the field of waterproofing and protective coatings. This process involves the application of a composite material made of a polymer matrix reinforced with fibers, typically comprising polyester, vinyl ester, or epoxy resins, and reinforced with fiberglass. The resulting FRP lining is not just robust and long-lasting but also exceptionally resistant to a variety of chemicals, extreme temperatures, and physical abrasion.

The significance and role of FRP lining in waterproofing applications are paramount. Its primary function is to serve as an impermeable barrier, preventing water ingress in a wide array of structures, including industrial tanks, pipelines, roofs, floors, drains, sewage treatment plants (STP), effluent treatment plants (ETP), and gutters. These structures are often exposed to harsh conditions and corrosive substances, making them susceptible to damage. FRP lining is particularly critical in environments like STP and ETP, where continuous exposure to water, chemicals, and other corrosive elements is a common challenge. By providing a robust and long-lasting waterproofing solution, FRP lining effectively protects these structures from corrosion, leakage, and other types of environmental wear. Its durability not only extends the life of these structures but also reduces the need for frequent maintenance and repairs, ensuring their integrity and functionality over time.

In sewage treatment plants and effluent treatment plants, where durability and chemical resistance are paramount, FRP lining ensures a reliable, long-term solution that significantly reduces maintenance needs and operational downtime. Similarly, in the case of drains and gutters, which are crucial for effective water management, FRP lining provides a durable, leak-proof solution, capable of withstanding harsh environmental conditions and ensuring uninterrupted functionality.

Moreover, the versatility of FRP lining makes it suitable for a wide range of surfaces and structures, including those made of concrete, steel, and wood. This adaptability is beneficial for various industrial and municipal applications, reinforcing the value of FRP lining as a comprehensive waterproofing solution.

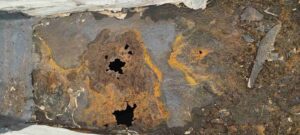

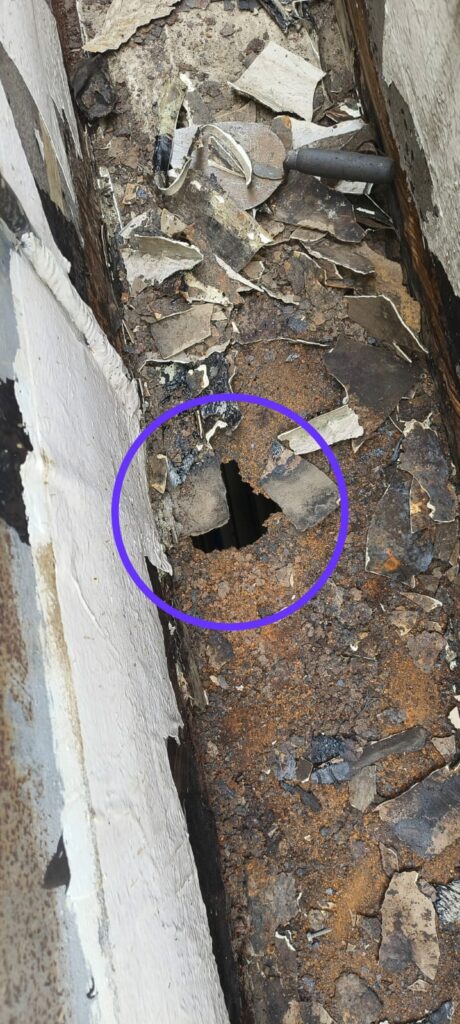

Rusted Metal Gutter
Rusted Metal Gutter

Fiber Reinforced Polymer (FRP) Lining: Concept, Materials, and Benefits

Concept of Fiber Reinforced Polymer Lining: Fiber Reinforced Polymer (FRP) lining is a composite material technology used for protective coating and structural reinforcement. The concept revolves around combining the strength and flexibility of fibers with a polymer matrix to create a robust, durable material. In FRP lining, fibers such as glass, carbon, or aramid are embedded within a polymer matrix, typically made from epoxy, vinyl ester, or polyester resins. This combination results in a material that is not only strong but also lightweight and can be molded into various shapes and sizes, making it ideal for lining and waterproofing diverse surfaces and structures.

Materials Used in FRP Lining and Their Contribution to Waterproofing:

  1. Fibers: The most commonly used fibers in FRP are fiberglass, which provide strength and rigidity. These fibers are excellent at distributing loads and resisting tensile and compressive stresses, which is essential in maintaining structural integrity.
  2. Polymer Matrix: The resins like epoxy, vinyl ester, or polyester act as a binding agent for the fibers. They protect the fibers, help in transferring the stress between them, and provide resistance against environmental degradation, chemicals, and water. The choice of resin depends on the required chemical resistance and mechanical properties.
  3. Additives and Fillers: Sometimes, additives and fillers are incorporated to enhance certain properties, such as UV resistance, flame retardancy, or to improve the ease of application.

The combination of these materials results in a lining that is impermeable and resistant to a variety of chemicals, making it an excellent choice for waterproofing applications.

Benefits of FRP Lining:

  1. Durability and Longevity: FRP is known for its exceptional durability, able to withstand harsh environments and resist corrosion, which extends the lifespan of the structures it protects.
  2. Chemical and Corrosion Resistance: It provides excellent resistance to a wide range of chemicals and is not prone to corrosion, making it suitable for industrial applications where exposure to chemicals is common.
  3. Waterproofing Efficiency: FRP lining creates an impermeable barrier, effectively preventing water ingress, which is crucial in protecting structures from water damage.
  4. Strength and Structural Integrity: Despite being lightweight, FRP is extremely strong, which helps in maintaining the structural integrity of the lined surfaces.
  5. Versatility: It can be applied to various substrates including concrete, steel, and wood, and can be molded to fit complex shapes and configurations.
  6. Low Maintenance: Once installed, FRP lining requires minimal maintenance, thanks to its resistance to wear and tear.
  7. Cost-Effectiveness: Considering its longevity and reduced need for maintenance, FRP lining is a cost-effective solution in the long term.

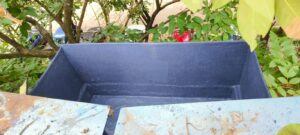

FRP Metal gutter
FRP Metal gutter

Advantages and Applications of FRP Lining

Advantages of FRP Lining:

  1. Strength: FRP lining provides exceptional structural strength, enhancing the durability of the surfaces it covers. This strength is crucial for areas that endure heavy loads or stress.
  2. Chemical Resistance: It is highly resistant to a wide range of chemicals, making it ideal for use in industrial environments where exposure to corrosive substances is common.
  3. Moisture Resistance: The impermeable nature of FRP lining effectively blocks moisture ingress, protecting structures from water damage, mold, and mildew.
  4. Weather Resistance: FRP lining stands up well against various weather conditions, including UV exposure, temperature extremes, and environmental wear, ensuring the longevity of the structure.
  5. Long Lifespan: Due to its robust nature, FRP lining typically has a long lifespan, reducing the need for frequent replacements or repairs.
  6. Cost-Effectiveness: While the initial investment in FRP lining might be higher than some alternatives, its durability and low maintenance requirements make it a cost-effective solution over time.

Applications of FRP Lining:

  1. Industrial Tanks: Used to line chemical, water, and oil tanks, providing a protective barrier against corrosion and leakage.
  2. Pipelines: Applied in both industrial and municipal pipelines to prevent corrosion and ensure the integrity of the pipeline network.
  3. Wastewater Treatment Plants: Used in sewage and effluent treatment plants (STP/ETP) for lining tanks and channels, offering protection against harsh chemicals and corrosive environments.
  4. Roofs and Floors: Ideal for waterproofing roofs and floors in commercial and industrial buildings, protecting them from water damage and leaks.
  5. Drains and Gutters: Applied to drains and gutters to prevent leakage and corrosion, ensuring efficient water management and drainage.
  6. Cooling Towers: Used in cooling towers in industrial plants to protect against chemical exposure and to maintain structural integrity.
  7. Marine Applications: Employed in boats and marine structures for its water-resistant properties and ability to withstand harsh marine environments.
  8. Food and Beverage Industry: Utilized in facilities where hygiene is crucial, as it does not support bacterial growth and is easy to clean.
  9. Pharmaceuticals and Laboratories: Suitable for areas requiring sterile environments due to its resistance to chemicals and ease of maintenance.
FRP Waterproofing Metal Gutter
FRP Waterproofing Metal Gutter

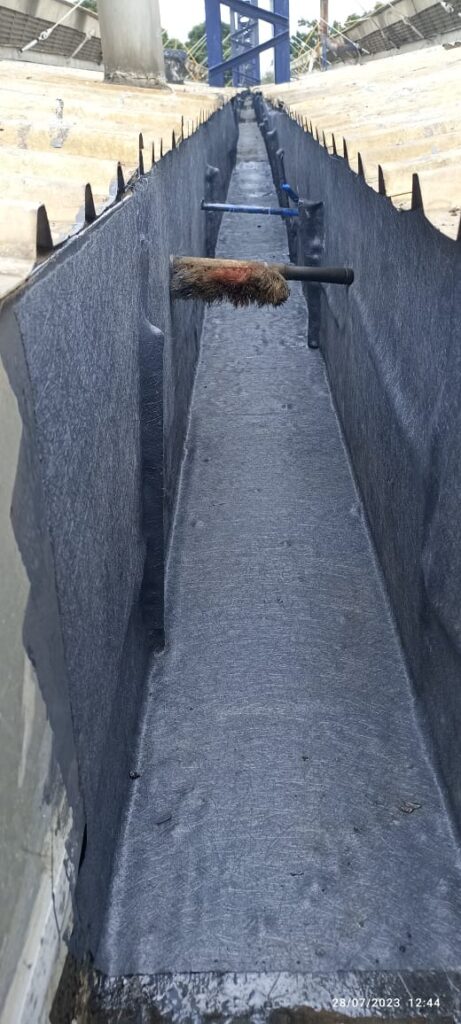

FRP Waterproofing works in Metal Gutter
FRP Waterproofing works in Metal Gutter

Applications of FRP Lining with Examples and Our Process

Applications of FRP Lining:

  1. Tanks:
    • Industrial Chemical Tanks: FRP lining is extensively used in tanks storing corrosive chemicals. For instance, in a chemical manufacturing plant, FRP lining is applied to sulfuric acid storage tanks, significantly extending their service life and ensuring safety.
    • Water Storage Tanks: It’s used in water tanks to prevent leaks and contamination, ensuring water purity, as seen in municipal water treatment facilities.
  2. Pipes:
    • Oil and Gas Pipelines: FRP lining is applied in pipelines for transporting oil and gas to protect against internal corrosion and reduce the likelihood of leaks, as demonstrated in offshore drilling operations.
    • Municipal Water and Sewage Pipes: It helps in preventing corrosion and leaks in sewage and water supply systems, as evidenced in urban infrastructure upgrades.
  3. Roofs and Floors:
    • Commercial Building Roofs: FRP lining is used to waterproof flat roofs, preventing leaks and water damage. A notable example is its application in large shopping centers to protect from rainwater damage.
    • Industrial Floors: In factories handling corrosive materials, FRP lining protects floors from chemical spills and heavy machinery wear.
  4. Specialized Applications:
    • Cooling Towers: Used in industrial cooling towers for corrosion resistance and structural reinforcement.
    • Marine Structures: Applied in ship hulls and marine platforms for its water-resistant properties and durability in saline environments.

Our FRP Lining Process:

  1. Assessment and Planning:
    • Initial site assessment to understand the application requirements and environmental factors.
    • Customized planning, selecting the appropriate type of FRP lining materials (resin and fiber types) based on the specific needs of the project.
  2. Surface Preparation:
    • Thorough cleaning and preparation of the surface to ensure proper adhesion of the FRP lining. This may involve sandblasting, grinding, or other methods to create a suitable surface profile.
  3. Application of FRP Lining:
    • Applying the resin and laying down the fiber material in layers.
    • Ensuring even distribution and proper alignment of fibers for optimal strength.
    • Curing the lining under controlled conditions to achieve maximum durability and adherence.
  4. Quality Control and Finishing:
    • Inspecting the applied lining for any defects or irregularities.
    • Applying finishing coats if necessary, for additional protection and aesthetics.
  5. Post-Application Inspection:
    • Conducting final inspections and tests to ensure the lining meets all specified requirements and standards.
  6. Maintenance and Follow-Up:
    • Providing guidelines for maintenance and conducting periodic check-ups to ensure the longevity and performance of the FRP lining.

Our process emphasizes quality, durability, and customer-specific needs, ensuring that the FRP lining effectively serves its intended purpose.

Geoliz Waterproofers Pvt. Ltd.’s FRP Lining Installation Process

At Geoliz Waterproofers Pvt. Ltd., we are committed to delivering top-tier FRP lining services, tailored to meet the unique needs of each project with precision and excellence. Our process is meticulously designed to ensure optimal performance and longevity of the FRP lining.

1. Initial Consultation and Site Assessment:

  • Consultation: We start by understanding your specific needs and the challenges of your project.
  • Site Assessment: Our experts conduct an on-site evaluation to determine the best FRP lining approach, considering factors like exposure conditions and structural requirements.

2. Surface Preparation:

  • Cleaning: The target surface is thoroughly cleaned to remove dirt, grease, and other contaminants.
  • Preparation: We employ methods like sandblasting or mechanical abrasion to create an optimal surface profile for adhesion.

3. Application of FRP Lining:

  • Material Selection: Based on the assessment, we select the appropriate resin and fiber materials.
  • Layering: The FRP lining is applied in layers, ensuring even coverage and alignment for maximum strength.
  • Resin Application: Resin is carefully applied to bond the fiber layers, using techniques like hand lay-up or spray-up, depending on the project scale and complexity.

4. Curing Process:

  • Controlled Curing: The applied lining is allowed to cure under controlled conditions. This phase is crucial for achieving the desired mechanical and chemical resistance properties.
  • Curing Time: The curing time varies based on the resin type and environmental conditions, typically ranging from several hours to a day.

5. Quality Assurance:

  • Inspection: Post-application, the lining is rigorously inspected for any defects or irregularities.
  • Testing: We conduct tests to ensure the lining meets our high standards and your specific requirements.

6. Finalization and Handover:

  • Finishing Touches: Any necessary finishing coats are applied for additional protection and aesthetics.
  • Client Approval: The project is completed with your final approval, ensuring satisfaction with the work done.

Why Choose Geoliz Waterproofers Pvt. Ltd.’s FRP Lining Services:

  1. Expertise and Experience: Our team consists of skilled professionals with extensive experience in FRP lining applications across various industries.
  2. Customized Solutions: We provide tailored FRP lining solutions, ensuring they meet the unique demands of your project.
  3. Quality Materials: We use only high-grade materials for our FRP linings, ensuring durability and longevity.
  4. Advanced Techniques: Our application methods are state-of-the-art, ensuring efficient and effective lining installation.
  5. Commitment to Safety: Safety is paramount in all our operations, both for our team and your site.
  6. Client-Centric Approach: We prioritize clear communication and collaboration with our clients throughout the project.
  7. After-Service Support: Our relationship with clients extends beyond project completion, offering support and maintenance advice.

By choosing Geoliz Waterproofers Pvt. Ltd., you are ensuring that your project benefits from the highest standards of quality, durability, and customer service in FRP lining installation.

Unique Aspects of Geoliz Waterproofers Pvt. Ltd.’s FRP Lining Services

At Geoliz Waterproofers Pvt. Ltd., our FRP lining services are distinguished by several key aspects that set us apart in the industry. We are dedicated to delivering unparalleled quality and value to our clients, underscored by our commitment to excellence in every facet of our work.

1. Experienced Technicians:

  • Skilled Workforce: Our team consists of highly trained and experienced technicians who specialize in FRP lining applications. They bring a wealth of knowledge and expertise to each project.
  • Continuous Training: We ensure that our staff stays updated with the latest techniques and advancements in FRP technology through ongoing training and development programs.

2. Use of High-Quality Materials:

  • Premium Resins and Fibers: We utilize only top-grade resins and fiber materials in our FRP lining installations. This ensures superior strength, durability, and performance of the finished product.
  • Custom Material Selection: Depending on the specific needs of your project, we carefully select the most suitable materials, considering factors like chemical resistance, temperature tolerance, and environmental impact.

3. Commitment to Safety:

  • Strict Safety Protocols: Safety is a core value at Geoliz Waterproofers Pvt. Ltd. We adhere to stringent safety protocols to ensure the well-being of our staff and clients throughout the installation process.
  • Regular Safety Audits: Our operations undergo regular safety audits to maintain the highest standards of workplace safety and compliance with industry regulations.

4. Environmental Standards Compliance:

  • Eco-Friendly Practices: We are committed to minimizing the environmental impact of our services. Our processes are designed to be eco-friendly, reducing waste and emissions wherever possible.
  • Compliance with Regulations: Our services comply with all relevant environmental standards and regulations, ensuring that our work not only meets but exceeds industry expectations.

5. Advanced Application Techniques:

  • Innovative Methods: We employ the latest application techniques in FRP lining, ensuring efficient, precise, and effective installation.
  • Customized Solutions: Our approach is tailored to the specific requirements of each project, allowing us to address unique challenges and provide optimal solutions.

6. Quality Assurance and Control:

  • Rigorous Inspection: Each project undergoes a thorough quality check to ensure that our work meets the high standards we set for ourselves and that our clients expect.
  • Consistency in Excellence: We maintain a consistent level of high quality in all our projects, regardless of scale or complexity.

By choosing Geoliz Waterproofers Pvt. Ltd. for your FRP lining needs, you are partnering with a company that not only excels in technical expertise and quality but also deeply values safety, environmental responsibility, and customer satisfaction. Our commitment to these principles is unwavering and at the core of every service we provide.
